Writer Magnetic Sim Card Dispenser Plastic Shell ISO7816 PBOC2.0 Standard
I. Feature:

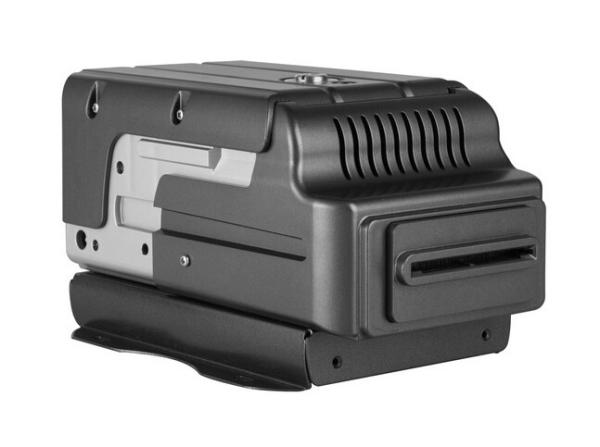

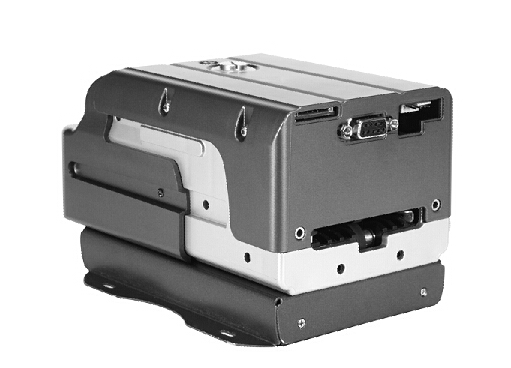

M600 is a high performance motorized magcard and IC card read/write machine. Use DC motor to drive card transmission, have infrared photosensor to detect card position. This machine with card reader M600-R and card writer M600-W serials.
II. Function
●Support ISO7811 standard magcard read. M600-W can write high/low resistance magcard. The high and low resistance of magnetic head is option.
●Support ISO7816, EMV, PBOC2.0 standard contact IC card read and write
●Through command can open non-even speed enter card to prevent pirate card data.
●Dual latch design, the first layer is mechanic latch which can prevent dust and foreign things. The second layer is electric latch which with anti-hook function
●Support comply with ISO7816,EMV,PBOC2.0 SAM card read/write
●Support eject or retrieve card when power off
●Support read/write contactless IC card
III. Technical Data and Specification
| Operation Power | TTCE-M600-R:12VDC(Max current1.5A,Static current100mA) TTCE-M600-W: 24VDC(Max current 2.0A,Static current 100mA) |
| Operation temperature | -20~85℃ |
| Operation Humidity | 0~90%RH |
| Interface | RS232 |
| Operation Condition | According the command to control |
| Card size | Width:54±0.5mm |
| | Length:85±0.5mm |
| | Thickness:0.6-1.5mm |
| | Materials: Paper card or plastic card |
| Maghead lift | 1,000,000 times |
| IC head lift | 500,000 times |
| Drive device | 1,000,000 times |
IV. Interface
(1)Power interface:
| No | Function |
| 1 | Main power,DC12V+ |
| 2 | Main power,GND |
| 3 | Spare power,GND |
| 4 | Spare power,X12V+ |
M600-R
| Item | Function |
| 1 | Main power,DC24V+ |
| 2 | Main power,GND |
| 3 | Spare power,GND |
| 4 | Spare power,X24V+ |
M600-W
(2)Communication interface: RS232 Support baud rate: 1200BPS, 2400BPS, 4800BPS, 9600BPS, 19200BPS, 38400BPS, 57600BPS. Automatically to meet baud rate.
